TA-Lib

Even if backtrader offers an already high number of built-in indicators and developing an indicator is mostly a matter of defining the inputs, outputs and writing the formula in a natural manner, some people want to use TA-LIB. Some of the reasons:

  • Indicator X is in the library and not in backtrader (the author would gladly accept a request)

  • TA-LIB behavior is well known and people trust good old things

In order to satisfy each and every taste, TA-LIB integration is offered.

Requirements

The installation details are on the GitHub repository

Using ta-lib

As easy as using any of the indicators already built-in in backtrader. Example of a Simple Moving Average. First the backtrader one:

import backtrader as bt

class MyStrategy(bt.Strategy):
    params = (('period', 20),)

    def __init__(self):
        self.sma = bt.indicators.SMA(self.data, period=self.p.period)
        ...

...

Now the ta-lib example:

import backtrader as bt

class MyStrategy(bt.Strategy):
    params = (('period', 20),)

    def __init__(self):
        self.sma = bt.talib.SMA(self.data, timeperiod=self.p.period)
        ...

...

Et voilá! Of course the params for the ta-lib indicators are defined by the library itself and not by backtrader. In this case the SMA in ta-lib takes a parameter named timeperiod to defined the size of the operating window.

For indicators that require more than one input, for example the Stochastic:

import backtrader as bt

class MyStrategy(bt.Strategy):
    params = (('period', 20),)

    def __init__(self):
        self.stoc = bt.talib.STOCH(self.data.high, self.data.low, self.data.close,
                                   fastk_period=14, slowk_period=3, slowd_period=3)

        ...

...

Notice how high, low and close have been individually passed. One could always pass open instead of low (or any other data series) and experiment.

The ta-lib indicator documentation is automatically parsed and added to the backtrader docs. You may also check the ta-lib source code/docs. Or adittionally do:

print(bt.talib.SMA.__doc__)

Which in this case outputs:

SMA([input_arrays], [timeperiod=30])

Simple Moving Average (Overlap Studies)

Inputs:
    price: (any ndarray)
Parameters:
    timeperiod: 30
Outputs:
    real

Which offers some information:

  • Which Input is to be expected (DISREGARD the ``ndarray`` comment because backtrader manages the conversions in the background)

  • Which parameters and which default values

  • Which output lines the indicator actually offers

Moving Averages and MA_Type

To select a specific moving average for indicators like bt.talib.STOCH, the standard ta-lib MA_Type is accesible with backtrader.talib.MA_Type. For example:

import backtrader as bt
print('SMA:', bt.talib.MA_Type.SMA)
print('T3:', bt.talib.MA_Type.T3)

Plotting ta-lib indicators

Just as with regular usage, there is nothing special to do to plot the ta-lib indicators.

Note

Indicators which output a CANDLE (all those looking for a candlestick pattern) deliver a binary output: either 0 or 100. In order to avoid adding a subplot to the chart, there is an automated plotting translation to plot them over the data at the point in time in which the pattern was recognized.

Examples and comparisons

The following are plots comparing the outputs of some ta-lib indicators against the equivalent built-in indicators in backtrader. To consider:

  • The ta-lib indicators get a TA_ prefix on the plot. This is specifically done by the sample to help the user spot which is which

  • Moving Averages (if both deliver the same result) will be plotted ON top of the other existing Moving Average. The two indicators cannot be seen separately and the test is a pass if that’s the case.

  • All samples include a CDLDOJI indicator as a reference

KAMA (Kaufman Moving Average)

This is the 1st example because it is the only (from all indicators which the sample directly compare) that has a difference:

  • The initial values of the the samples are not the same

  • At some point in time, the values converge and both KAMA implementations have the same behavior.

After having analyzed the ta-lib source code:

  • The implementation in ta-lib makes a non-industry standard choice for the 1st values of the KAMA.

    The choice can be seen in the source code quoting from the source code): The yesterday price is used here as the previous KAMA.

backtrader does the usual choice which is the same as for example the one from Stockcharts:

  • KAMA at StockCharts

    Since we need an initial value to start the calculation, the first KAMA is just a simple moving average

Hence the difference. Furthermore:

  • The ta-lib KAMA implementation doesn’t allow specifying the fast and slow periods for the adjustment of the scalable constant defined by Kaufman.

Sample execution:

$ ./talibtest.py --plot --ind kama

Output


SMA

$ ./talibtest.py --plot --ind sma

Output


EMA

$ ./talibtest.py --plot --ind ema

Output

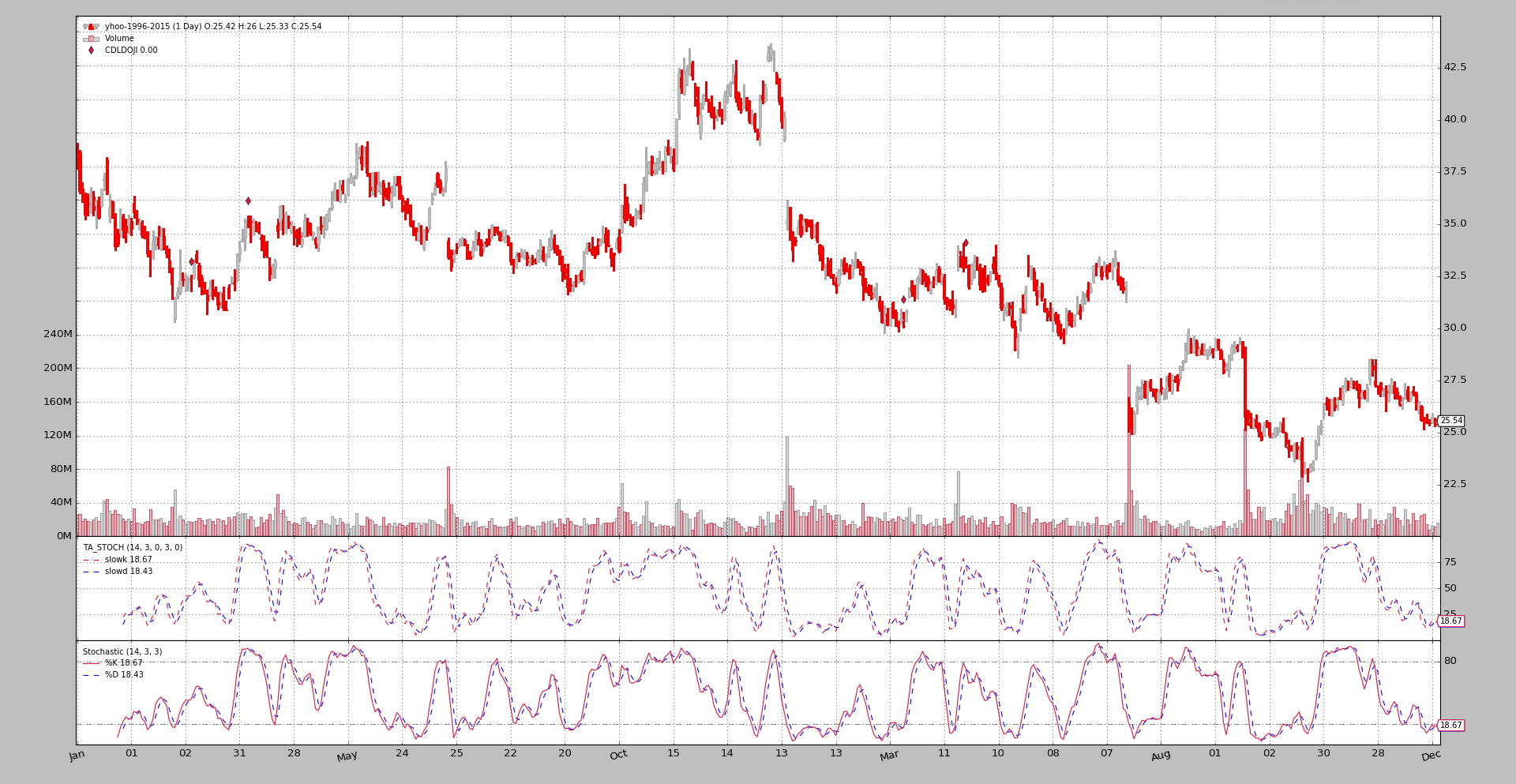

Stochastic

$ ./talibtest.py --plot --ind stoc

Output


RSI

$ ./talibtest.py --plot --ind rsi

Output

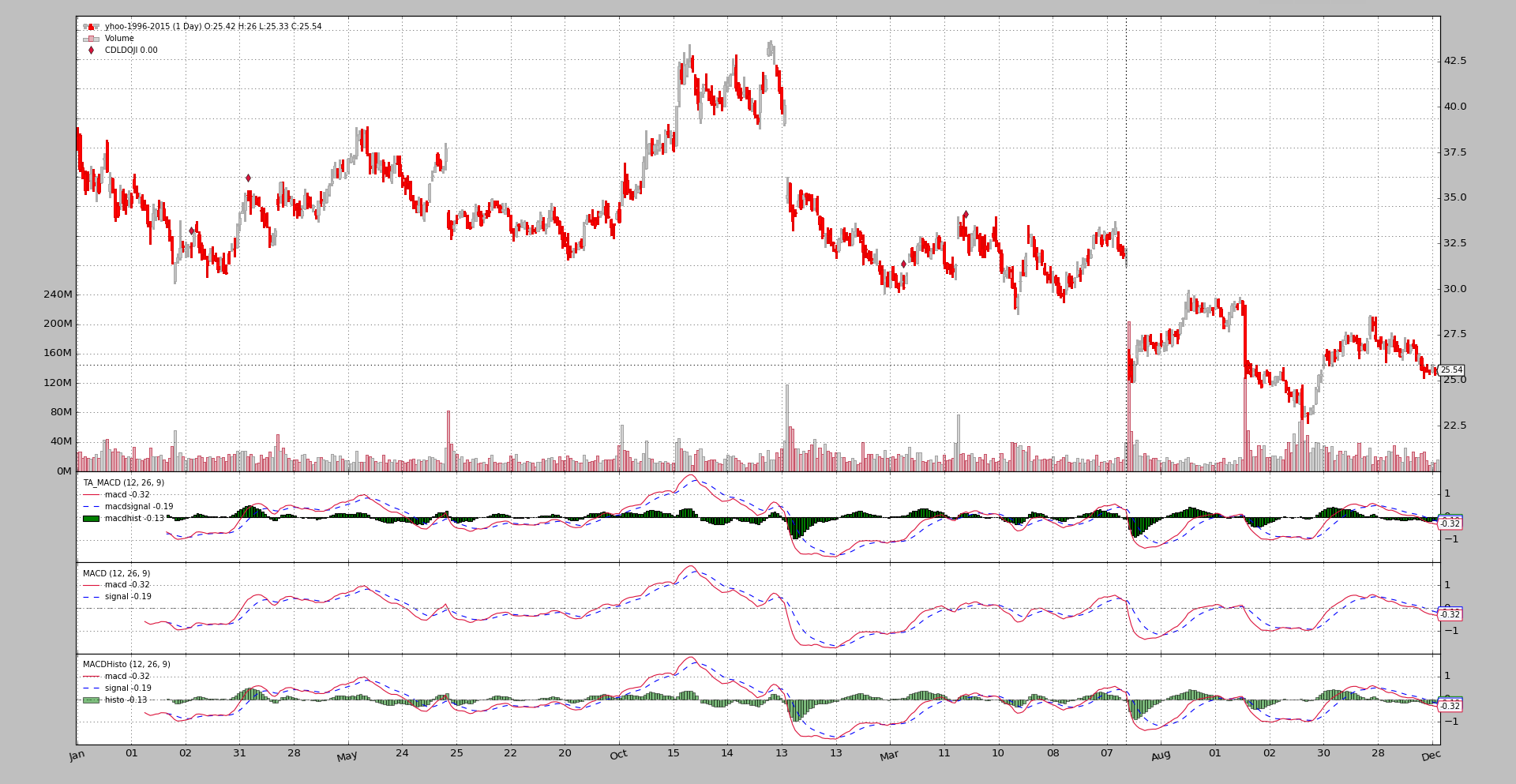

MACD

$ ./talibtest.py --plot --ind macd

Output

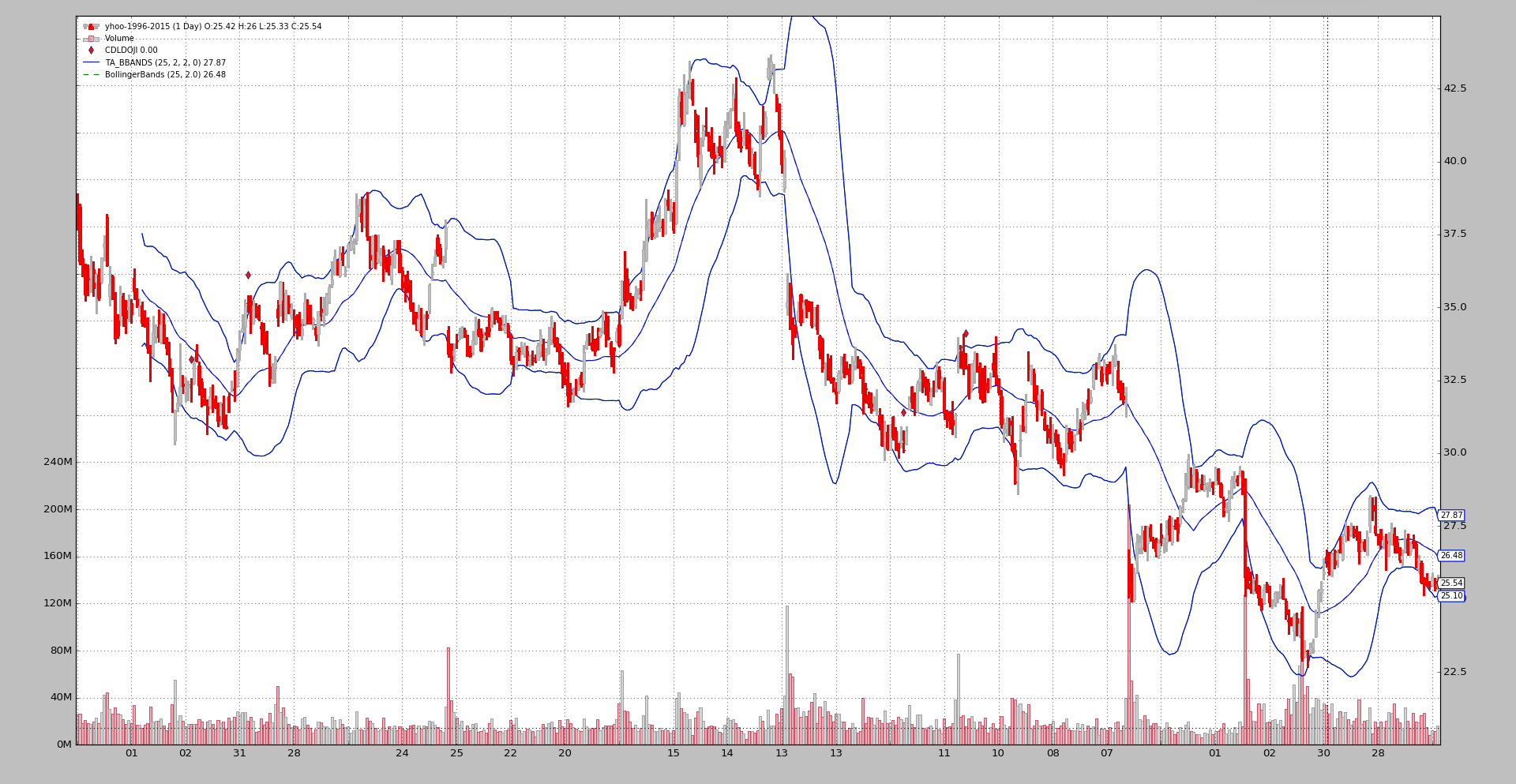

Bollinger Bands

$ ./talibtest.py --plot --ind bollinger

Output


AROON

Note that ta-lib chooses to put the down line first and the colours are inverted when compared with the backtrader built-in indicator.

$ ./talibtest.py --plot --ind aroon

Output


Ultimate Oscillator

$ ./talibtest.py --plot --ind ultimate

Output

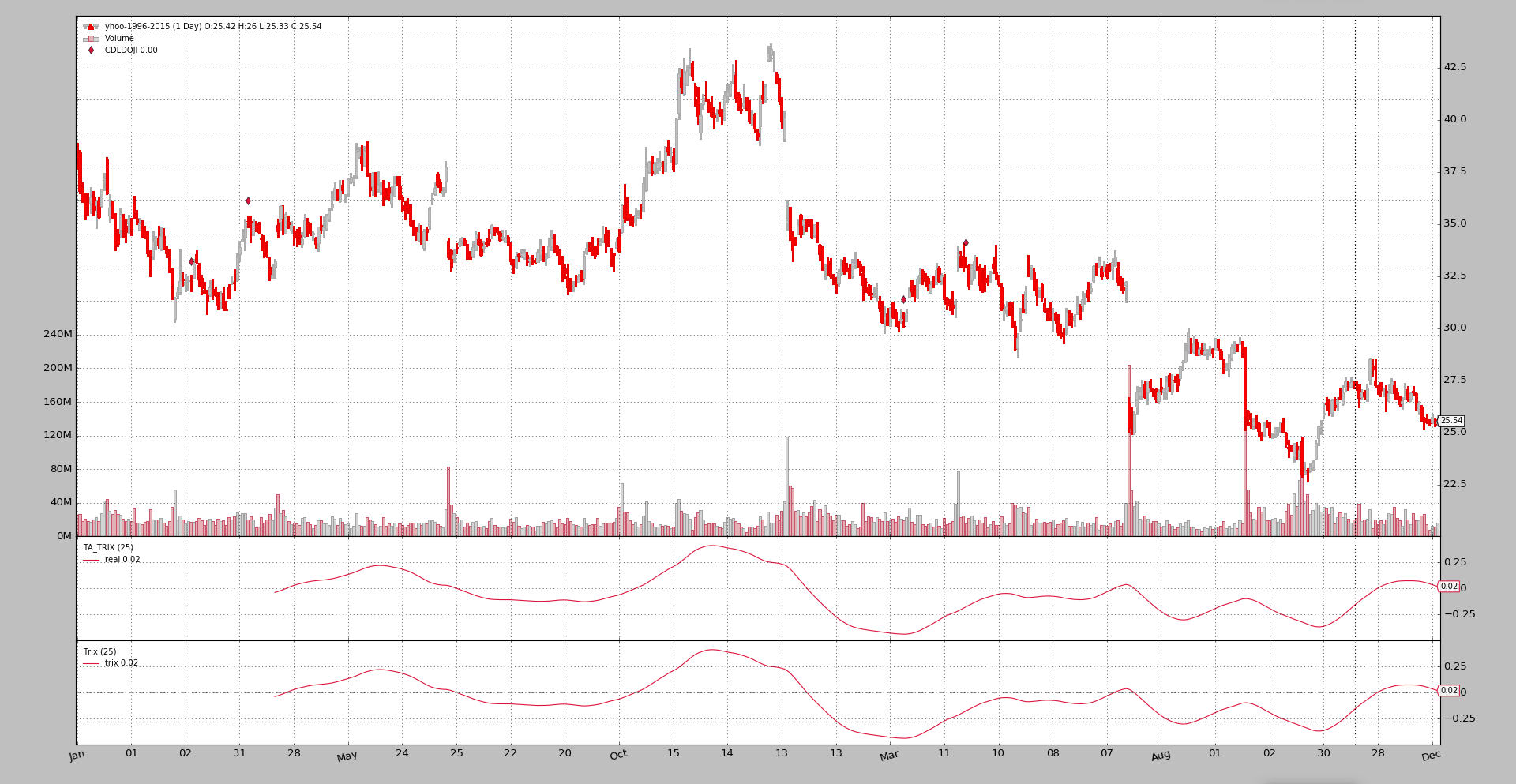

Trix

$ ./talibtest.py --plot --ind trix

Output

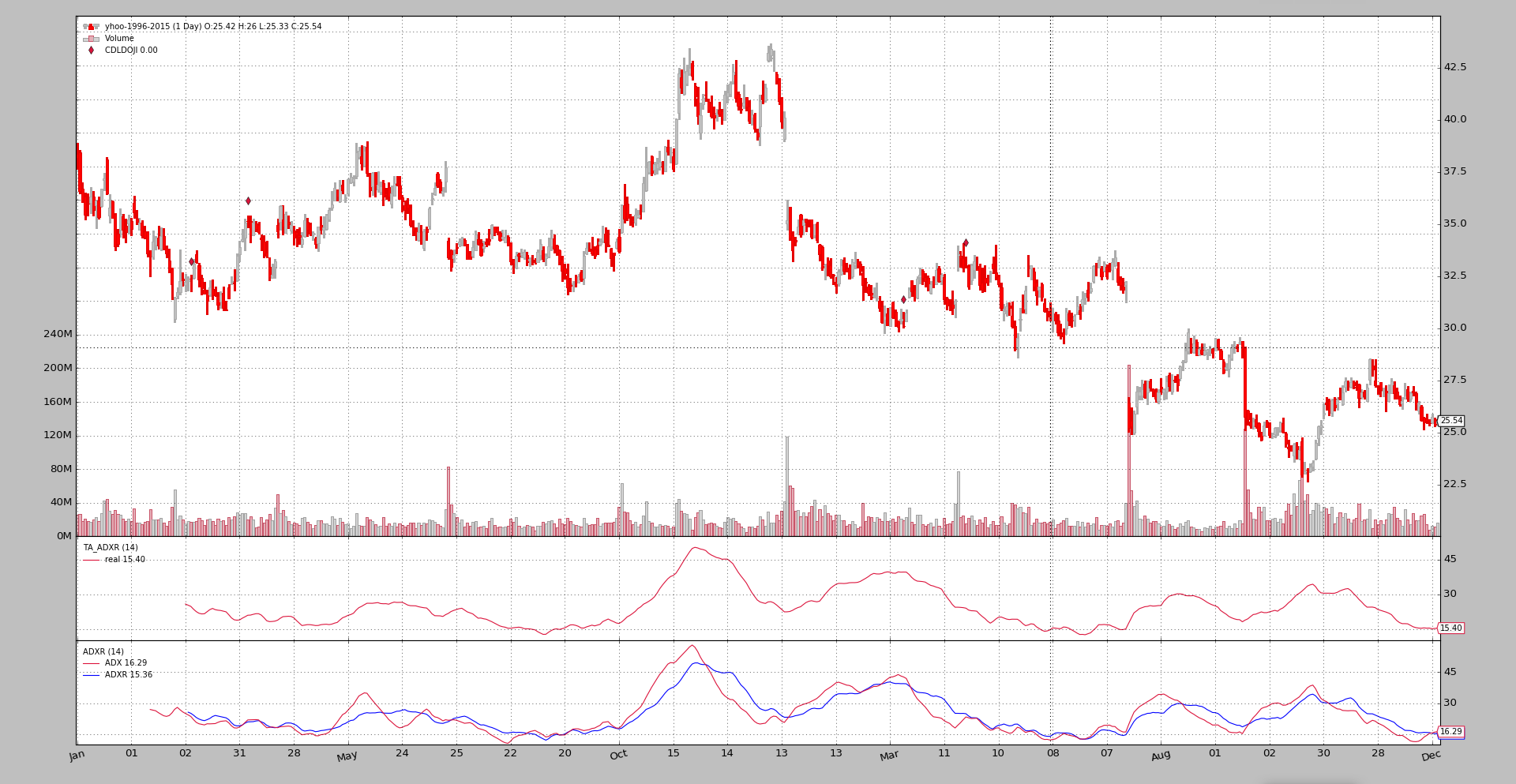

ADXR

Here backtrader offers both the ADX and ADXR lines.

$ ./talibtest.py --plot --ind adxr

Output


DEMA

$ ./talibtest.py --plot --ind dema

Output

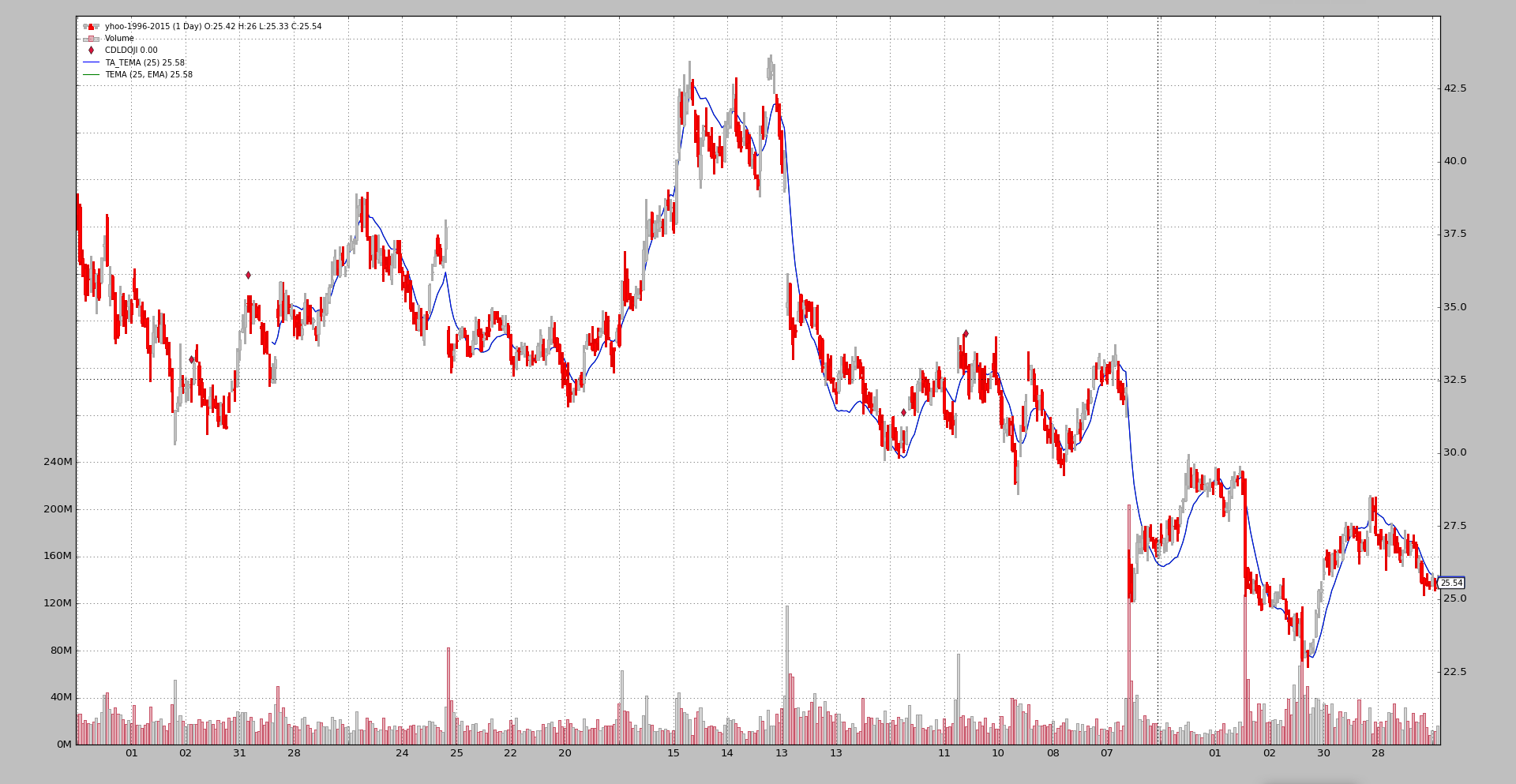

TEMA

$ ./talibtest.py --plot --ind tema

Output

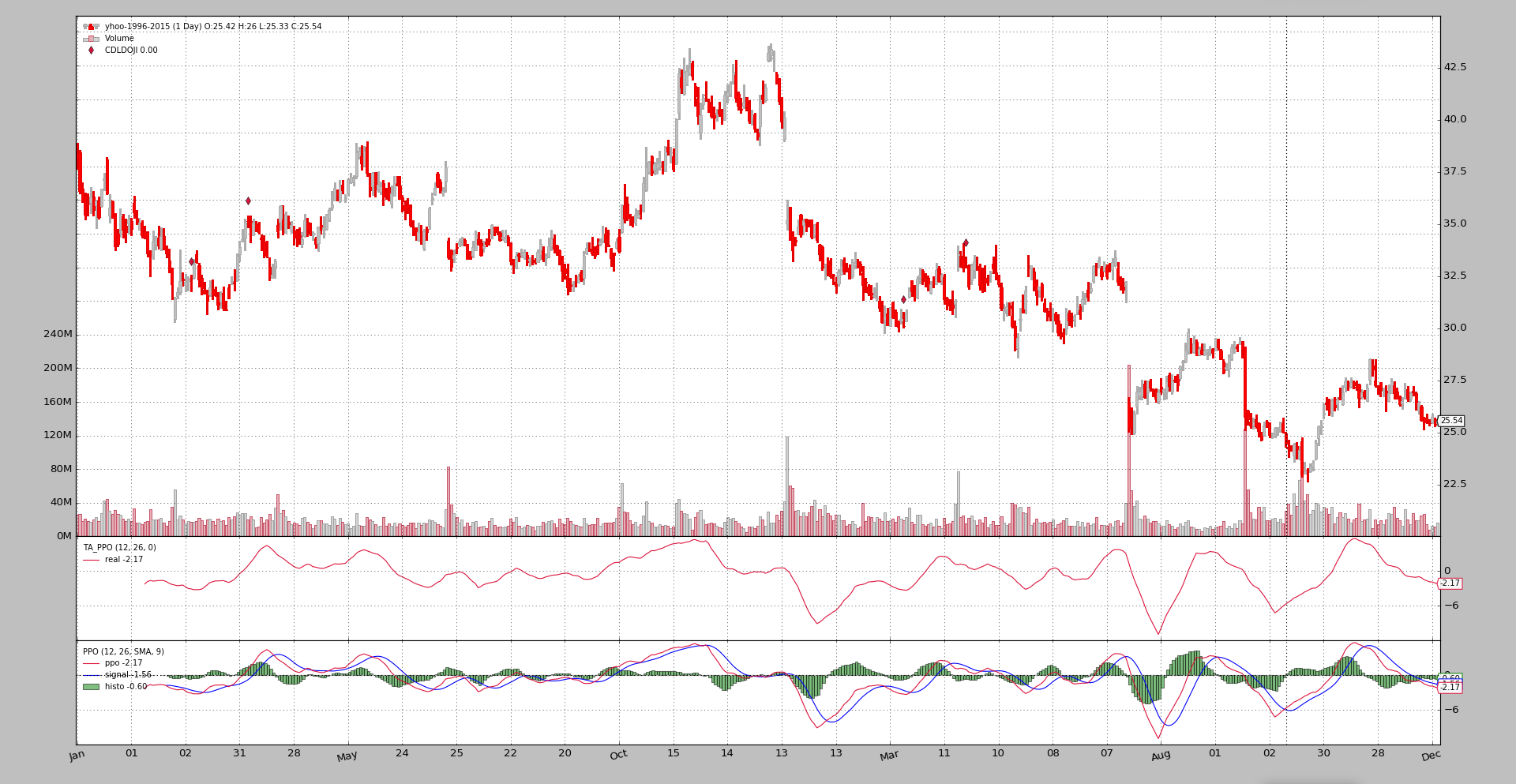

PPO

Here backtrader offers not only the ppo line, but a more traditional macd approach.

$ ./talibtest.py --plot --ind ppo

Output


WilliamsR

$ ./talibtest.py --plot --ind williamsr

Output

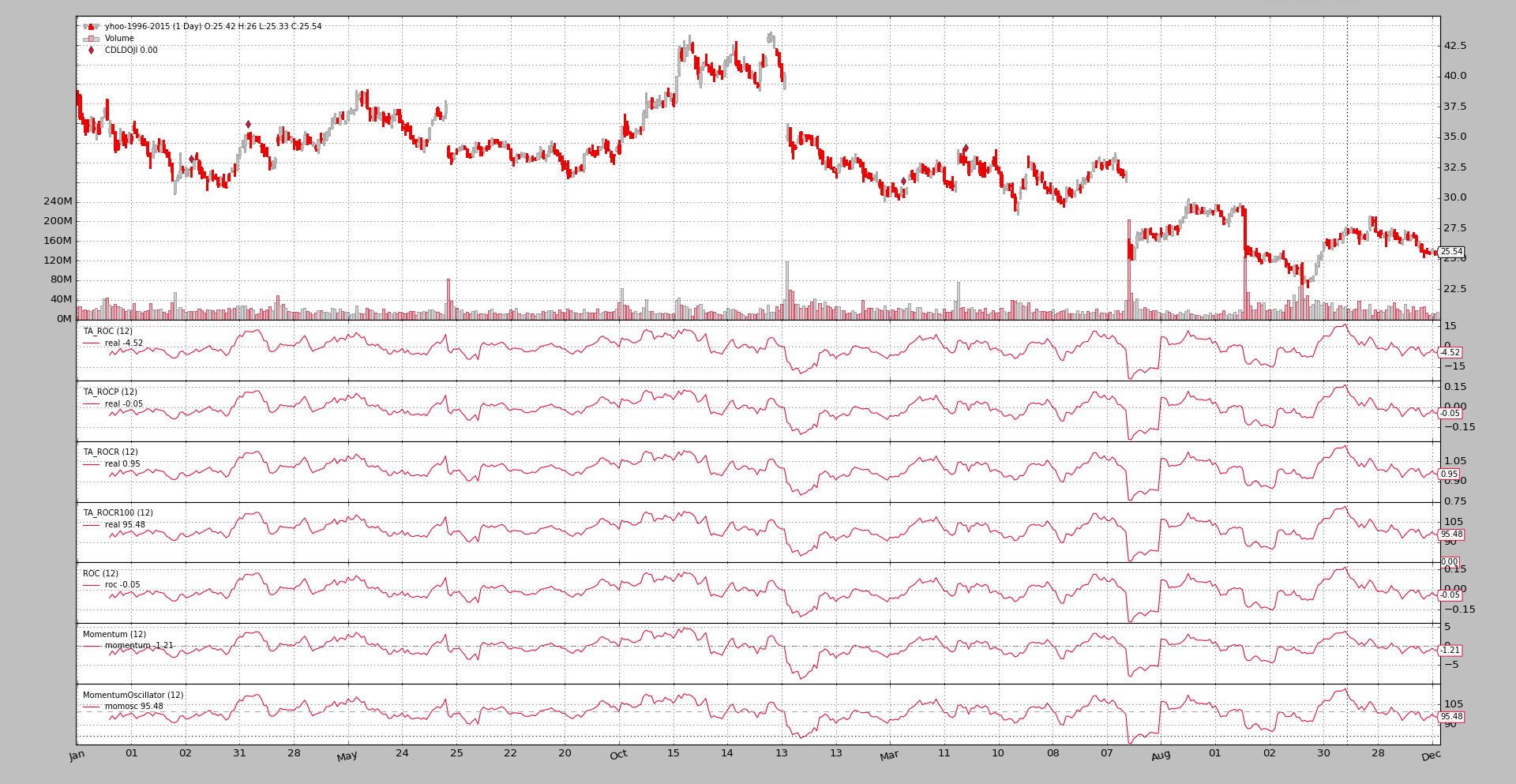

ROC

All indicators show have exactly the same shape, but how to track momentum or rate of change has several definitions

$ ./talibtest.py --plot --ind roc

Output


Sample Usage

$ ./talibtest.py --help
usage: talibtest.py [-h] [--data0 DATA0] [--fromdate FROMDATE]
                    [--todate TODATE]
                    [--ind {sma,ema,stoc,rsi,macd,bollinger,aroon,ultimate,trix,kama,adxr,dema,tema,ppo,williamsr,roc}]
                    [--no-doji] [--use-next] [--plot [kwargs]]

Sample for ta-lib

optional arguments:
  -h, --help            show this help message and exit
  --data0 DATA0         Data to be read in (default:
                        ../../datas/yhoo-1996-2015.txt)
  --fromdate FROMDATE   Starting date in YYYY-MM-DD format (default:
                        2005-01-01)
  --todate TODATE       Ending date in YYYY-MM-DD format (default: 2006-12-31)
  --ind {sma,ema,stoc,rsi,macd,bollinger,aroon,ultimate,trix,kama,adxr,dema,tema,ppo,williamsr,roc}
                        Which indicator pair to show together (default: sma)
  --no-doji             Remove Doji CandleStick pattern checker (default:
                        False)
  --use-next            Use next (step by step) instead of once (batch)
                        (default: False)
  --plot [kwargs], -p [kwargs]
                        Plot the read data applying any kwargs passed For
                        example (escape the quotes if needed): --plot
                        style="candle" (to plot candles) (default: None)

Sample Code

from __future__ import (absolute_import, division, print_function,
                        unicode_literals)

import argparse
import datetime

import backtrader as bt


class TALibStrategy(bt.Strategy):
    params = (('ind', 'sma'), ('doji', True),)

    INDS = ['sma', 'ema', 'stoc', 'rsi', 'macd', 'bollinger', 'aroon',
            'ultimate', 'trix', 'kama', 'adxr', 'dema', 'ppo', 'tema',
            'roc', 'williamsr']

    def __init__(self):
        if self.p.doji:
            bt.talib.CDLDOJI(self.data.open, self.data.high,
                             self.data.low, self.data.close)

        if self.p.ind == 'sma':
            bt.talib.SMA(self.data.close, timeperiod=25, plotname='TA_SMA')
            bt.indicators.SMA(self.data, period=25)
        elif self.p.ind == 'ema':
            bt.talib.EMA(timeperiod=25, plotname='TA_SMA')
            bt.indicators.EMA(period=25)
        elif self.p.ind == 'stoc':
            bt.talib.STOCH(self.data.high, self.data.low, self.data.close,
                           fastk_period=14, slowk_period=3, slowd_period=3,
                           plotname='TA_STOCH')

            bt.indicators.Stochastic(self.data)

        elif self.p.ind == 'macd':
            bt.talib.MACD(self.data, plotname='TA_MACD')
            bt.indicators.MACD(self.data)
            bt.indicators.MACDHisto(self.data)
        elif self.p.ind == 'bollinger':
            bt.talib.BBANDS(self.data, timeperiod=25,
                            plotname='TA_BBANDS')
            bt.indicators.BollingerBands(self.data, period=25)

        elif self.p.ind == 'rsi':
            bt.talib.RSI(self.data, plotname='TA_RSI')
            bt.indicators.RSI(self.data)

        elif self.p.ind == 'aroon':
            bt.talib.AROON(self.data.high, self.data.low, plotname='TA_AROON')
            bt.indicators.AroonIndicator(self.data)

        elif self.p.ind == 'ultimate':
            bt.talib.ULTOSC(self.data.high, self.data.low, self.data.close,
                            plotname='TA_ULTOSC')
            bt.indicators.UltimateOscillator(self.data)

        elif self.p.ind == 'trix':
            bt.talib.TRIX(self.data, timeperiod=25,  plotname='TA_TRIX')
            bt.indicators.Trix(self.data, period=25)

        elif self.p.ind == 'adxr':
            bt.talib.ADXR(self.data.high, self.data.low, self.data.close,
                          plotname='TA_ADXR')
            bt.indicators.ADXR(self.data)

        elif self.p.ind == 'kama':
            bt.talib.KAMA(self.data, timeperiod=25, plotname='TA_KAMA')
            bt.indicators.KAMA(self.data, period=25)

        elif self.p.ind == 'dema':
            bt.talib.DEMA(self.data, timeperiod=25, plotname='TA_DEMA')
            bt.indicators.DEMA(self.data, period=25)

        elif self.p.ind == 'ppo':
            bt.talib.PPO(self.data, plotname='TA_PPO')
            bt.indicators.PPO(self.data, _movav=bt.indicators.SMA)

        elif self.p.ind == 'tema':
            bt.talib.TEMA(self.data, timeperiod=25, plotname='TA_TEMA')
            bt.indicators.TEMA(self.data, period=25)

        elif self.p.ind == 'roc':
            bt.talib.ROC(self.data, timeperiod=12, plotname='TA_ROC')
            bt.talib.ROCP(self.data, timeperiod=12, plotname='TA_ROCP')
            bt.talib.ROCR(self.data, timeperiod=12, plotname='TA_ROCR')
            bt.talib.ROCR100(self.data, timeperiod=12, plotname='TA_ROCR100')
            bt.indicators.ROC(self.data, period=12)
            bt.indicators.Momentum(self.data, period=12)
            bt.indicators.MomentumOscillator(self.data, period=12)

        elif self.p.ind == 'williamsr':
            bt.talib.WILLR(self.data.high, self.data.low, self.data.close,
                           plotname='TA_WILLR')
            bt.indicators.WilliamsR(self.data)


def runstrat(args=None):
    args = parse_args(args)

    cerebro = bt.Cerebro()

    dkwargs = dict()
    if args.fromdate:
        fromdate = datetime.datetime.strptime(args.fromdate, '%Y-%m-%d')
        dkwargs['fromdate'] = fromdate

    if args.todate:
        todate = datetime.datetime.strptime(args.todate, '%Y-%m-%d')
        dkwargs['todate'] = todate

    data0 = bt.feeds.YahooFinanceCSVData(dataname=args.data0, **dkwargs)
    cerebro.adddata(data0)

    cerebro.addstrategy(TALibStrategy, ind=args.ind, doji=not args.no_doji)

    cerebro.run(runcone=not args.use_next, stdstats=False)
    if args.plot:
        pkwargs = dict(style='candle')
        if args.plot is not True:  # evals to True but is not True
            npkwargs = eval('dict(' + args.plot + ')')  # args were passed
            pkwargs.update(npkwargs)

        cerebro.plot(**pkwargs)


def parse_args(pargs=None):

    parser = argparse.ArgumentParser(
        formatter_class=argparse.ArgumentDefaultsHelpFormatter,
        description='Sample for sizer')

    parser.add_argument('--data0', required=False,
                        default='../../datas/yhoo-1996-2015.txt',
                        help='Data to be read in')

    parser.add_argument('--fromdate', required=False,
                        default='2005-01-01',
                        help='Starting date in YYYY-MM-DD format')

    parser.add_argument('--todate', required=False,
                        default='2006-12-31',
                        help='Ending date in YYYY-MM-DD format')

    parser.add_argument('--ind', required=False, action='store',
                        default=TALibStrategy.INDS[0],
                        choices=TALibStrategy.INDS,
                        help=('Which indicator pair to show together'))

    parser.add_argument('--no-doji', required=False, action='store_true',
                        help=('Remove Doji CandleStick pattern checker'))

    parser.add_argument('--use-next', required=False, action='store_true',
                        help=('Use next (step by step) '
                              'instead of once (batch)'))

    # Plot options
    parser.add_argument('--plot', '-p', nargs='?', required=False,
                        metavar='kwargs', const=True,
                        help=('Plot the read data applying any kwargs passed\n'
                              '\n'
                              'For example (escape the quotes if needed):\n'
                              '\n'
                              '  --plot style="candle" (to plot candles)\n'))

    if pargs is not None:
        return parser.parse_args(pargs)

    return parser.parse_args()


if __name__ == '__main__':
    runstrat()
