Sizers Smart Staking

Release 1.6.4.93 marks a major milestone in backtrader even if the change in version numbering is a minor one.

Position Sizing is one of the things that actually set the foundation for this project after reading Trade Your Way To Financial Freedom from Van K. Tharp.

This is not the book in which Van K. Tharp details his approach to Position Sizing but the topic is presented and discussed in the book. One of the examples with regards to this had this setup

  • If not in the market, toss a coin to decide whether to enter or not

  • If already in the market, control the position with a Stop which is 2 x ATR and which gets updated if the price moves favorably to the taken position

The important parts about this:

  • Entering the market is random

  • The approach is tested with different Sizing schemes and this together with having a dynamic stop, makes the system profitable

And following the principles to set up your own “system” (wether manual/automated/computerized, technical/fundamental, …) backtrader was born to one day test this scenario.

This could have been tested with any of the existing platforms, but there would have been no fun along the way and the many challenges solved, which were not even considered when kick-starting backtrader

Sizers were in the platform from the very beginning, but hidden because many other things including Live Trading started getting in the way. But this is now over and the Van K. Tharp scenario will be tested. Rather sooner than later.

In the meantime a couple of Sizers for a sample test.

Sizers to control positioning

The sample shows a potential use case in which Sizers alter the behavior of a strategy by controlling the sizing. Check the docs at backtrader.readthedocs.io to understand the sizing interface.

The 2 sizers:

  • LongOnly: will return a fixed size position if the current position is 0 and will return the same fixed size to close it if already in the market.

    class LongOnly(bt.Sizer):
        params = (('stake', 1),)

        def _getsizing(self, comminfo, cash, data, isbuy):
            if isbuy:
                return self.p.stake

            # Sell situation
            position = self.strategy.getposition(data)
            if not position.size:
                return 0  # do not sell if nothing is open

            return self.p.stake

  • FixedReverser: will return a fixed size stake if not in the market and a doubled fixed size stake if already in the market to allow for a reversal

    class FixedReverser(bt.Sizer):
        params = (('stake', 1),)

        def _getsizing(self, comminfo, cash, data, isbuy):
            position = self.broker.getposition(data)
            size = self.p.stake * (1 + (position.size != 0))
            return size


These 2 Sizers will be combined with a very simple strategy.

class CloseSMA(bt.Strategy):
    params = (('period', 15),)

    def __init__(self):
        sma = bt.indicators.SMA(self.data, period=self.p.period)
        self.crossover = bt.indicators.CrossOver(self.data, sma)

    def next(self):
        if self.crossover > 0:
            self.buy()

        elif self.crossover < 0:
            self.sell()

Notice how the strategy uses a Close-SMA crossover signal to issue buy and sell commands with an important thing to consider:

  • No check of positioning is done in the strategy

The same strategy as seen in the executions below changes behavior from long-only to long-short by simply changing the sizer with this code in the sample (controlled with the switch --longonly)

    if args.longonly:
        cerebro.addsizer(LongOnly, stake=args.stake)
    else:
        cerebro.addsizer(FixedReverser, stake=args.stake)

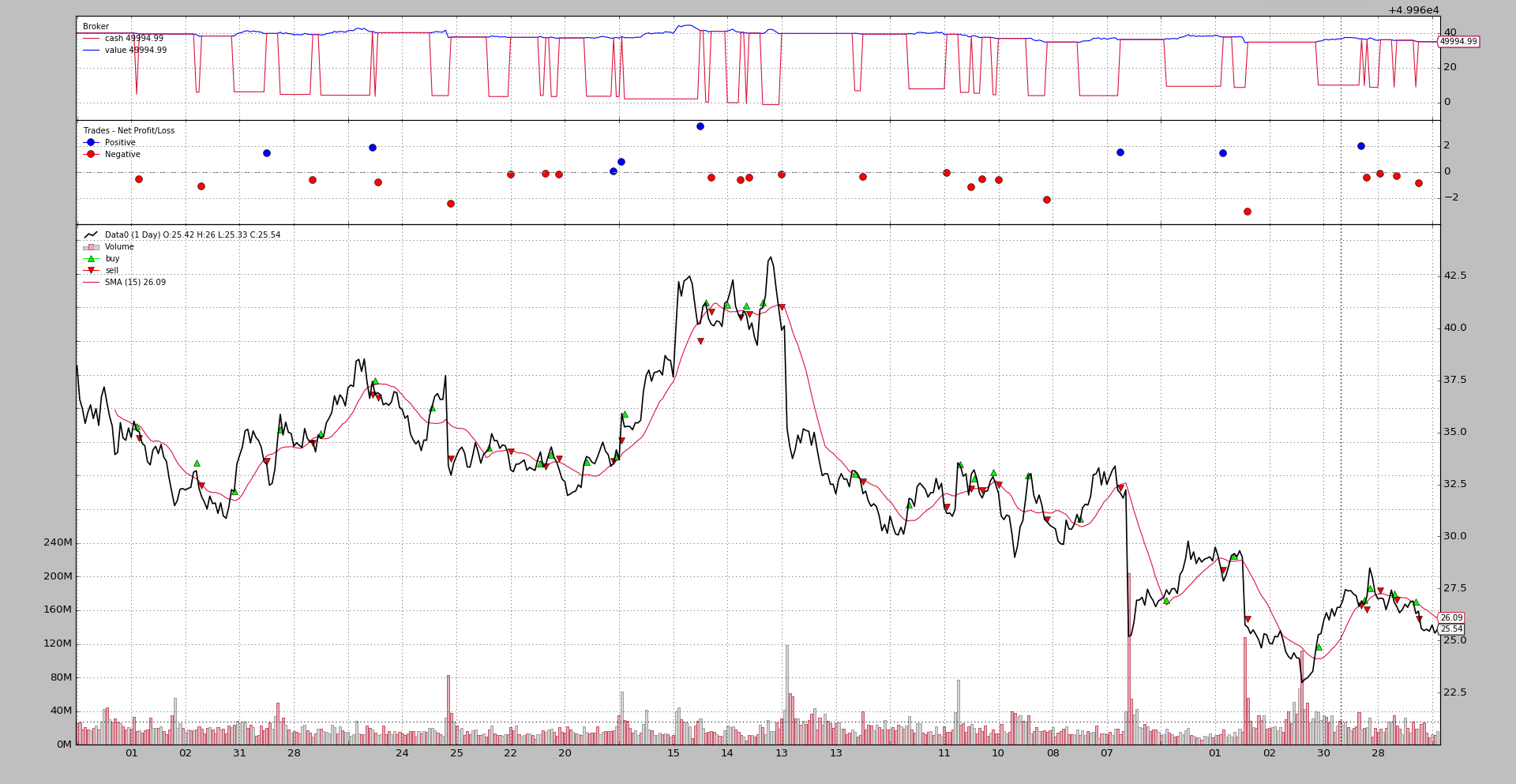

Long-Only Execution

Done with the command:

$ ./sizertest.py --longonly --plot

And this output.

!image

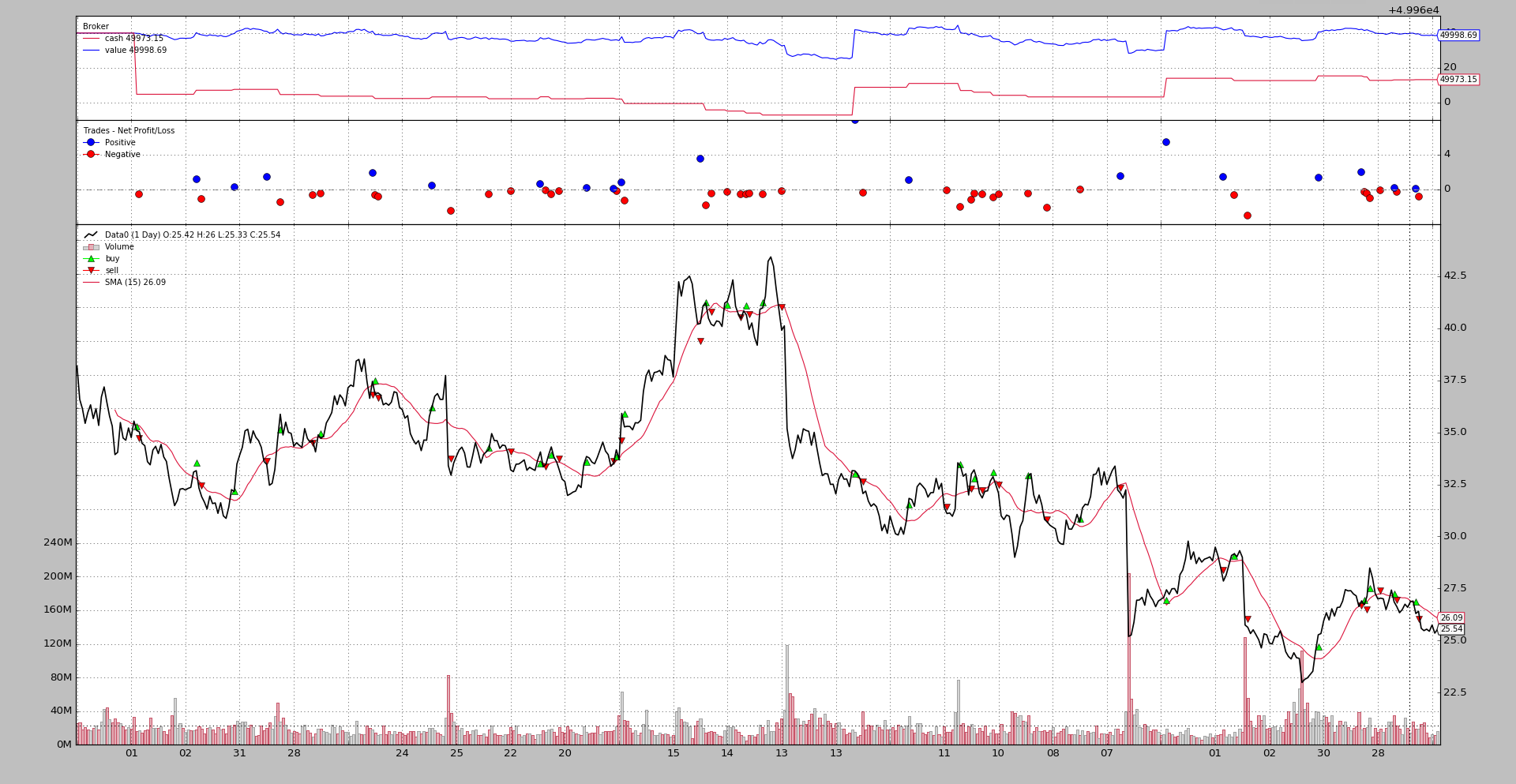

Long-Short Execution

Done with the command:

$ ./sizertest.py --plot

And this output.

!image

Which immediate shows:

  • The number of trades has doubled

  • The cash (except at the beginning) never equals the value because the strategy is always in the market

Sample Usage

$ ./sizertest.py --help
usage: sizertest.py [-h] [--data0 DATA0] [--fromdate FROMDATE]
                    [--todate TODATE] [--cash CASH] [--longonly]
                    [--stake STAKE] [--period PERIOD] [--plot [kwargs]]

Sample for sizer

optional arguments:
  -h, --help            show this help message and exit
  --data0 DATA0         Data to be read in (default:
                        ../../datas/yhoo-1996-2015.txt)
  --fromdate FROMDATE   Starting date in YYYY-MM-DD format (default:
                        2005-01-01)
  --todate TODATE       Ending date in YYYY-MM-DD format (default: 2006-12-31)
  --cash CASH           Cash to start with (default: 50000)
  --longonly            Use the LongOnly sizer (default: False)
  --stake STAKE         Stake to pass to the sizers (default: 1)
  --period PERIOD       Period for the Simple Moving Average (default: 15)
  --plot [kwargs], -p [kwargs]
                        Plot the read data applying any kwargs passed For
                        example: --plot style="candle" (to plot candles)
                        (default: None)

The Full code

from __future__ import (absolute_import, division, print_function,
                        unicode_literals)

import argparse
import datetime
import random

import backtrader as bt


class CloseSMA(bt.Strategy):
    params = (('period', 15),)

    def __init__(self):
        sma = bt.indicators.SMA(self.data, period=self.p.period)
        self.crossover = bt.indicators.CrossOver(self.data, sma)

    def next(self):
        if self.crossover > 0:
            self.buy()

        elif self.crossover < 0:
            self.sell()


class LongOnly(bt.Sizer):
    params = (('stake', 1),)

    def _getsizing(self, comminfo, cash, data, isbuy):
        if isbuy:
            return self.p.stake

        # Sell situation
        position = self.strategy.getposition(data)
        if not position.size:
            return 0  # do not sell if nothing is open

        return self.p.stake


class FixedReverser(bt.Sizer):
    params = (('stake', 1),)

    def _getsizing(self, comminfo, cash, data, isbuy):
        position = self.broker.getposition(data)
        size = self.p.stake * (1 + (position.size != 0))
        return size


def runstrat(args=None):
    args = parse_args(args)

    cerebro = bt.Cerebro()
    cerebro.broker.set_cash(args.cash)

    dkwargs = dict()
    if args.fromdate:
        fromdate = datetime.datetime.strptime(args.fromdate, '%Y-%m-%d')
        dkwargs['fromdate'] = fromdate

    if args.todate:
        todate = datetime.datetime.strptime(args.todate, '%Y-%m-%d')
        dkwargs['todate'] = todate

    data0 = bt.feeds.YahooFinanceCSVData(dataname=args.data0, **dkwargs)
    cerebro.adddata(data0, name='Data0')

    cerebro.addstrategy(CloseSMA, period=args.period)

    if args.longonly:
        cerebro.addsizer(LongOnly, stake=args.stake)
    else:
        cerebro.addsizer(FixedReverser, stake=args.stake)

    cerebro.run()
    if args.plot:
        pkwargs = dict()
        if args.plot is not True:  # evals to True but is not True
            pkwargs = eval('dict(' + args.plot + ')')  # args were passed

        cerebro.plot(**pkwargs)


def parse_args(pargs=None):

    parser = argparse.ArgumentParser(
        formatter_class=argparse.ArgumentDefaultsHelpFormatter,
        description='Sample for sizer')

    parser.add_argument('--data0', required=False,
                        default='../../datas/yhoo-1996-2015.txt',
                        help='Data to be read in')

    parser.add_argument('--fromdate', required=False,
                        default='2005-01-01',
                        help='Starting date in YYYY-MM-DD format')

    parser.add_argument('--todate', required=False,
                        default='2006-12-31',
                        help='Ending date in YYYY-MM-DD format')

    parser.add_argument('--cash', required=False, action='store',
                        type=float, default=50000,
                        help=('Cash to start with'))

    parser.add_argument('--longonly', required=False, action='store_true',
                        help=('Use the LongOnly sizer'))

    parser.add_argument('--stake', required=False, action='store',
                        type=int, default=1,
                        help=('Stake to pass to the sizers'))

    parser.add_argument('--period', required=False, action='store',
                        type=int, default=15,
                        help=('Period for the Simple Moving Average'))

    # Plot options
    parser.add_argument('--plot', '-p', nargs='?', required=False,
                        metavar='kwargs', const=True,
                        help=('Plot the read data applying any kwargs passed\n'
                              '\n'
                              'For example:\n'
                              '\n'
                              '  --plot style="candle" (to plot candles)\n'))

    if pargs is not None:
        return parser.parse_args(pargs)

    return parser.parse_args()


if __name__ == '__main__':
    runstrat()
